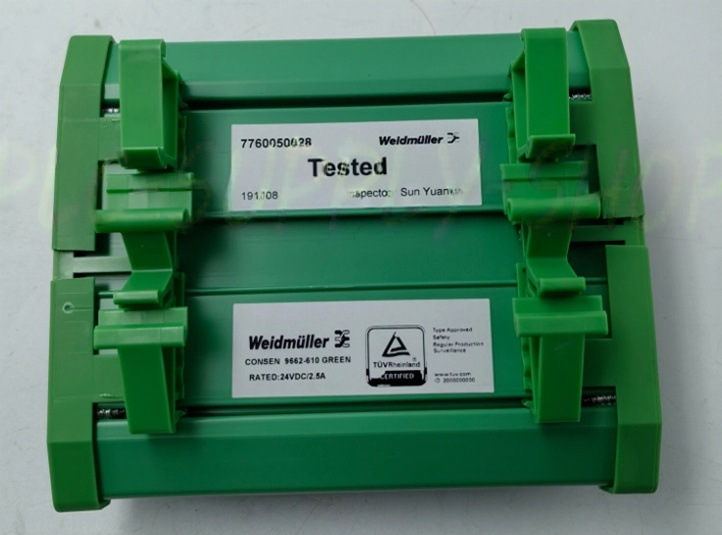

Invensys TRICONEX 9662-610 Terminal Board 24VDC

9662-610 7760050028 Invensys TRICONEX Terminal Board

Product Details:

Description:

Termination panel 9662–610 is compatible with 24 VDC digital output modules and has 16 load

terminals and commoned power terminals (PWR+ and PWR–).

When using 32-point modules, you must use two term panels for each digital output module.

Each term panel comes with two sets of labels: 1-16 and 17-32. For information on how to apply

the labels, see Appendix F, Panel Labels.

Specifications

This table describes specifications for 9662–610.

Compatible Modules

This table describes digital output modules compatible with 9662–610.

CAUTION Use termination panel 9662-610 with self-protected modules only.

Table 67 Specifications for Term Panel 9662–610

Feature Description

Panel type Commoned

Points 16

Maximum total current1

1. When the 9662-610 panel is used with the Model 3625 DO Module, the maximum total current is 10

amps per termination panel to limit the power dissipation of the module.

16 amps

Table 68 Modules Compatible with 9662–610

Module Part

Number

Points per

Module Module Description

3624 16 24 VDC, commoned, supervised, opto-isolated, self-protected, TMR

3625 32 24 VDC, commoned, supervised/non-supervised, opto-isolated,

self-protected, TMR

3664 32 24 VDC, commoned, opto-isolated, self-protected, dual

3674 32 24 VDC, commoned, opto-isolated, self-protected, dual
