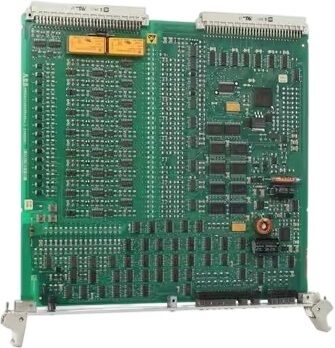

Name: 216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
Brand: Joyoung International Trading Co.,Ltd
SKU: 216DB61
Price: 3000 USD
Availability: InStock

Casa Produtos Módulo de ABB

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

Detalhes do produto:

Lugar de origem:	Suécia
Marca:	ABB
Certificação:	COC
Número do modelo:	216DB61

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 peça
Preço:	3000
Detalhes da embalagem:	Original
Tempo de entrega:	5-8 DIAS DE TRABALHO
Termos de pagamento:	T/T
Habilidade da fonte:	10 peças por dia

Contato

Descrição de produto detalhada

Nome:	216DB61 HESG334063R100	Modelo:	216DB61
Pacote:	Padrão	Garantia:	12 meses
peso bruto:	2,2 libras / 35,2 oz / 1kg	tamanho da embalagem:	7 "x 7" x 4 "(18 cm x 18 cm x 10 cm)
Tempo de espera:	1 a 3 dias	Qualidade:	Marca 100%
Estoque:	Disponível
Destacar:	ABB Binary I/P board , ABB Tripping Unit Module , HESG334063R100 ABB Module

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

Product Overview

The 216DB61 binary I/P and tripping unit is a specialized interface module featuring 16 input and 8 output channels. This critical component serves as the essential link between protection logic and tripping actions, ensuring reliable signal transfer within the protection system.

Technical Specifications

Brand Name	ABB
Model	216VC62A
Product ID	HESG324442R112/F
Catalog	Procontrol
Origin	SWEDEN
Dimension	161612cm
Weight	0.5kg
HS Code	8537101190
Payment	T/T
Sales Price	$3000
Warranty	12 months
Lead Time	3-5 work days

Functional Description

8 Output Channels: Dedicated to transferring tripping commands from activated protection functions directly to the 216GA62 tripping relay module
16 Input Channels: Receive external binary signals from the 216GE61 I/P relay module and forward them via the system bus to the 216VC62a processing unit for logic evaluation
Dual Connector Design: Upper connector "a" for inputs CHI01...CHI16, and lower connector "b" for outputs CHO01...CHO08
Configurable Operation: Plug-in jumper BR1 on the PCB determines whether "ENABLE" and "BLOCK CH OUT" functions are active, controlling tripping output channel status

Note: The enabling/blocking function applies solely to the 216DB61 unit itself and does not affect other system components.

Reference Information

07NG20	GJR5221900R2
07EB61	GJV3074341R1
QHFT201	YL681001-AB
